GENERATOR SET

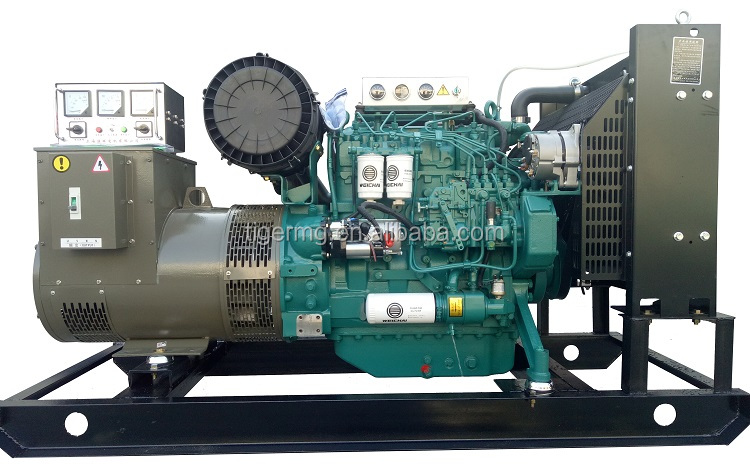

Weichai 60KW diesel generator

Weichai 60KW diesel generator


Send Inquiry
Product Introduction

Essential details

Warranty:3months-1year, 1 year or 1500 running hours                                Certification:CE/ISO9001

Place of Origin:Shandong, China                                                                     Brand Name:SITC

Model Number:SITC60GF                                                                                Rated Voltage:110/220V or 230/400V

Rated Current:As the voltage                                                                          Speed:1500/1800rpm

Frequency:50/60HZ                                                                                         Weight:400kgs

Product name:60kw generator 75kva weichai dynamo diesel generator       Engine:with WEICHAI

Engine model:WP4.1D66E200                                                                         Governor:Mechaniacl/Electronic

Alternator:WATTEK brand                                                                               Controller:Smartgen 6110

ATS:800A                                                                                                         Options:Silent canopy

Certificate:ISO9001 / CE
factory price 60kw generator 75kva weichai dynamo diesel generator powered by wp4d66e200

Engine  parameters

Model

WEICHAI WP4.1D66E200

Prime power/speed

60kw/1500rpm

Intake method

Turbocharged

Rated Fuel Consumption at 100% load

<210 g/kw.h

Starting method

24V electric start

Alternator  parameters

Brand

 with Wattek 224F 224F

Type

Brushless, 100% copper wires stator & rotator

Copper wires vernished times

3 times

Rated output power

60kw

Voltage Regulate method

Adjusted automatically by AVR

Protection class / Insulation Class

IP23 / H

Supply details

1)  Diesel engine (with radiator, muffler)

2)  Alterantor  (with AVR)

3)  Base steel frame with silent canopy & fuel tank

4)  Free-maintenance battery

5)  The control panel with ATS system

6)  Strong woodcase packing.

Open type 120kw 150 kva three phase diesel power generator price for sale
